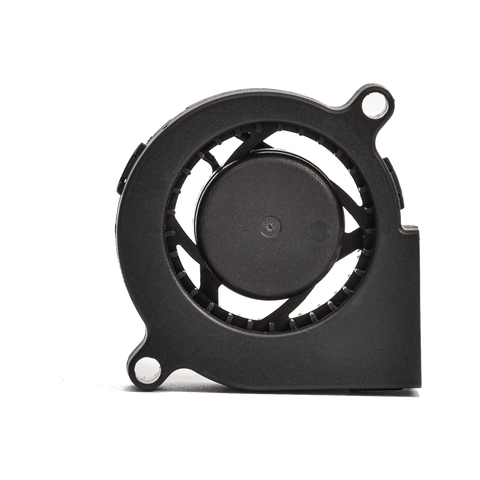

Prometheus PCG36FLW36-10G-AA 50mm 12V DC Blower
50 mm x 50 mm x 10.5 mm · 10-13.5 V DC
centrifugal fan for high-impedance enclosure cooling. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Prometheus PCG36FLW36-10G-AA 50mm 12V DC Blower.
The Prometheus PCG36FLW36-10G-AA is a 12V DC axial cooling fan designed for high-pressure blower applications in compact electronics enclosures. The 50mm × 50mm × 10.5mm frame balances airflow capacity with installation footprint. Nominal supply is 12V DC, with an operating input window of 10-13.5V DC. Rated speed is 6,000 RPM. Speed control is via pwm.
At rated input, maximum free-air delivery is 3.35 CFM and peak static pressure is 14.16 mmH2O. Acoustic output is rated at 37.1 dB(A).
Build details include IP68 sealing available as a configuration option. Operating temperature range spans -55°C to +85°C.
Key specifications
Reference values for Prometheus PCG36FLW36-10G-AA 50mm 12V DC Blower at nominal input and in free air: 3.35 CFM free-air flow at 14.16 mmH2O static pressure, supply 10-13.5 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 50 mm x 50 mm x 10.5 mm |
| Rated voltage | 12 V DC |
| Voltage range | 10-13.5 V DC |
| Max airflow (free air) | 3.35 CFM |
| Max static pressure | 14.16 mmH2O |
| Rated rotational speed | 6,000 RPM |
| Acoustic noise | 37.1 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Prometheus PCG36FLW36-10G-AA at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | PWM |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Prometheus PCG36FLW36-10G-AA. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 50 mm x 50 mm x 10.5 mm |
| Protection rating | IP68 configuration option |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Prometheus PCG36FLW36-10G-AA at rated input.
P-Q Curve — PCG36FLW36-10G-AA @ 12V DC
At nominal input conditions, this reference curve maps static pressure from 0-14.1 mmH2O against airflow from 0-3.3 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
