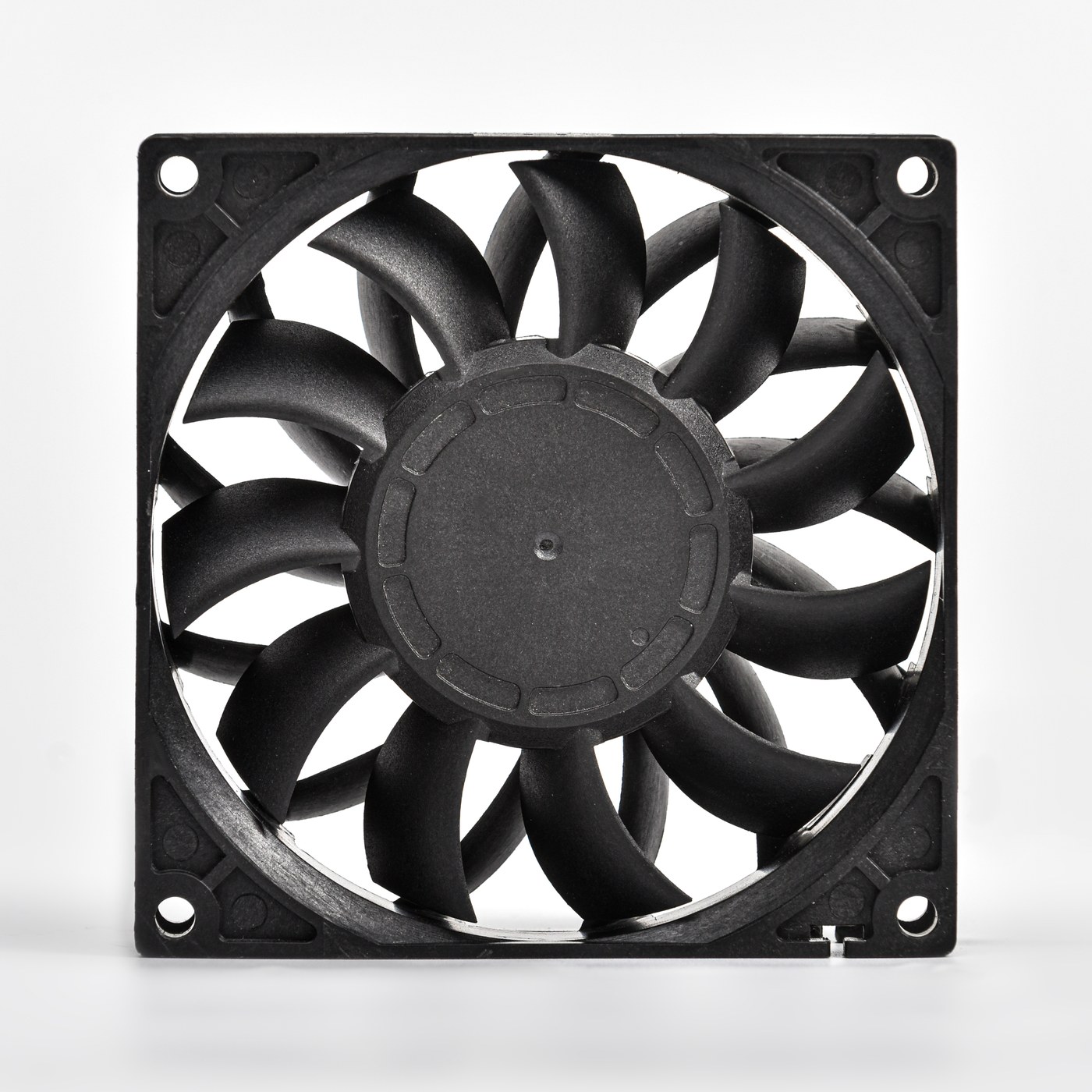

Megapro PCG85FZW48-25G-AG 92mm 24V DC Axial Fan
92 mm x 92 mm x 25.4 mm · 18-26.5 V DC
DC axial fan for radar cabinets and ground-defense electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Megapro PCG85FZW48-25G-AG 92mm 24V DC Axial Fan.
The Megapro PCG85FZW48-25G-AG is a 24V DC axial cooling fan designed for directed-energy and ground-vehicle thermal management. The 92mm × 92mm × 25.4mm frame balances airflow capacity with installation footprint. Nominal supply is 24V DC, with an operating input window of 18-26.5V DC. Rated speed is 8,300 RPM. Speed control is via pwm.
At rated input, maximum free-air delivery is 107.15 CFM and peak static pressure is 31.27 mmH2O. Acoustic output is rated at 62.6 dB(A).
Build details include IP67 sealing available as a configuration option. Operating temperature range spans -55°C to +85°C.
Key specifications
Reference values for Megapro PCG85FZW48-25G-AG 92mm 24V DC Axial Fan at nominal input and in free air: 107.15 CFM free-air flow at 31.27 mmH2O static pressure, supply 18-26.5 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 92 mm x 92 mm x 25.4 mm |
| Rated voltage | 24 V DC |
| Voltage range | 18-26.5 V DC |
| Max airflow (free air) | 107.15 CFM |
| Max static pressure | 31.27 mmH2O |
| Rated rotational speed | 8,300 RPM |
| Acoustic noise | 62.6 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Megapro PCG85FZW48-25G-AG at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | PWM |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Megapro PCG85FZW48-25G-AG. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 92 mm x 92 mm x 25.4 mm |
| Protection rating | IP67 configuration option |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Megapro PCG85FZW48-25G-AG at rated input.
P-Q Curve — PCG85FZW48-25G-AG @ 24V DC
At nominal input conditions, this reference curve maps static pressure from 0-28.8 mmH2O against airflow from 0-107.2 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
