Megapro PCG85FZW516-83G-AB 95mm 24V DC Axial Fan
95.2 mm x 95.2 mm x 79.5 mm · 18-32 V DC
DC axial fan for radar cabinets and ground-defense electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Megapro PCG85FZW516-83G-AB 95mm 24V DC Axial Fan.
The Megapro PCG85FZW516-83G-AB is a 28V DC axial cooling fan designed for rack-mounted military electronics and shelter cooling systems. The 95.2mm × 95.2mm × 79.5mm frame balances airflow capacity with installation footprint. Nominal supply is 28V DC, with an operating input window of 18-32V DC. Rated speed is 16,000 RPM. Speed control is via pwm.
At rated input, maximum free-air delivery is 301 CFM and peak static pressure is 162 mmH2O. Acoustic output is rated at 90.5 dB(A).
Build details include IP68 sealing available as a configuration option. Operating temperature range spans -55°C to +85°C.
Key specifications
Reference values for Megapro PCG85FZW516-83G-AB 95mm 24V DC Axial Fan at nominal input and in free air: 301.00 CFM free-air flow at 162.00 mmH2O static pressure, supply 18-32 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 95.2 mm x 95.2 mm x 79.5 mm |
| Rated voltage | 28 V DC |
| Voltage range | 18-32 V DC |
| Max airflow (free air) | 301.00 CFM |
| Max static pressure | 162.00 mmH2O |
| Rated rotational speed | 16,000 RPM |
| Acoustic noise | 90.5 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Megapro PCG85FZW516-83G-AB at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | PWM |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Megapro PCG85FZW516-83G-AB. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 95.2 mm x 95.2 mm x 79.5 mm |
| Protection rating | IP68 configuration option |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Megapro PCG85FZW516-83G-AB at rated input.

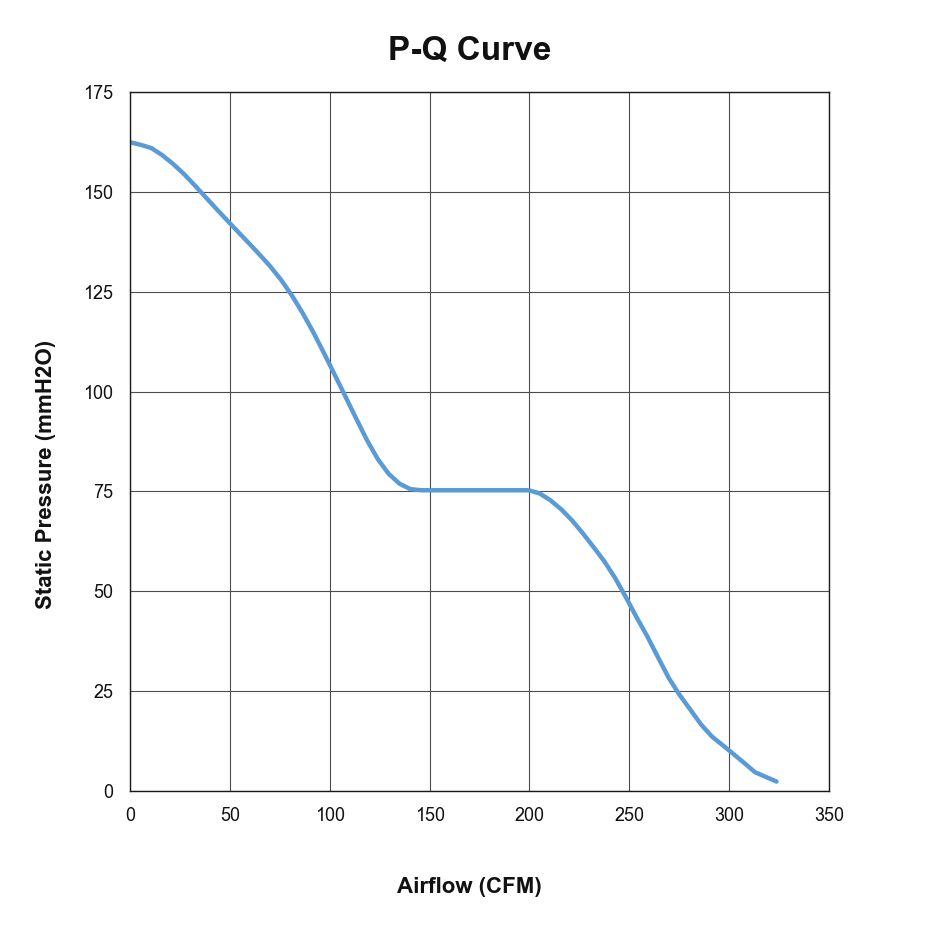

P-Q Curve — PCG85FZW516-83G-AB @ 28V DC
At nominal input conditions, this reference curve maps static pressure from 0-162.4 mmH2O against airflow from 0-323.7 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
