Wedge Locks and Card Retainers
XS-A100-5-3M2F1M3
5-segment · L 100 mm · 3-M2 mounting
XS-A100-5-3M2F1M3 belongs to the Wedge Locks and Card Retainers range and is listed in the 2025 Perseus public parts catalogue. The figures below are the manual values for this part number; confirm the drawing before release to production.

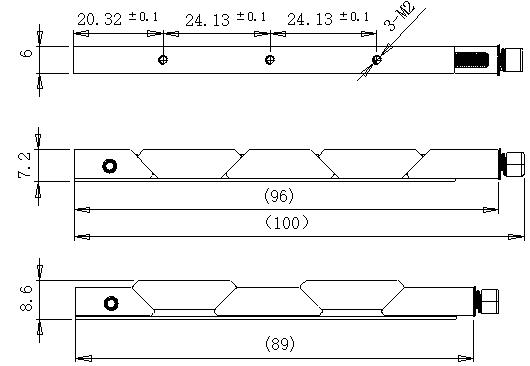

Dimensions and specification
| Segments | 5-segment |
|---|---|
| Weight (g) | 10.5 g |
| L (mm) | 100 |
| L1 (mm) | 48.26 |
| L2 (mm) | 20.32 |
| H1 (mm) | 7.2 |
| H2 (mm) | 8.6 |
| H3 (mm) | 6 |
| Recommended width (mm) | 8 |
| Mounting holes | 3-M2 |
| Locking screw | M3 |
| Screw head standard | Internal hex, GB/T 70.1 (≈ ISO 4762 / DIN 912) |
Dimensions in millimetres and weight in grams unless the label states otherwise. Temperatures are given in °C with the °F equivalent.
Where it is used
Conduction-cooled VPX, CPCI, VME, ASAAC and ATR modules in airborne, shipborne and vehicle-mounted chassis, where the module has to be bonded to the cold wall and held mechanically at the same time.
