Vibration Isolators
GMX-3
GMX friction dampers · 3 kg nominal · 2–3.5 kg range
GMX-3 belongs to the Vibration Isolators range and is listed in the 2025 Perseus public parts catalogue. The figures below are the manual values for this part number; confirm the drawing before release to production.

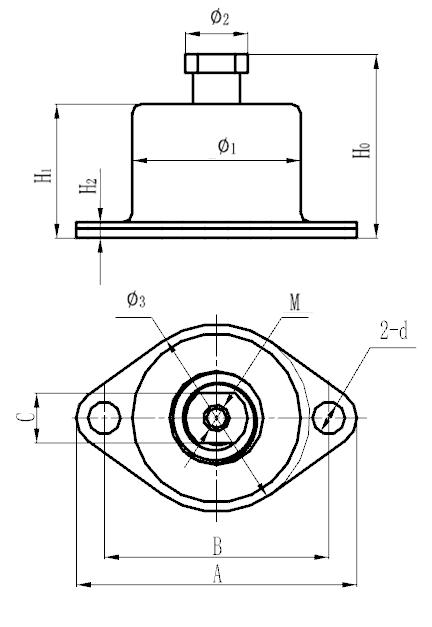

Dimensions and specification
| Nominal load (kg) | 3 |
|---|---|
| Load range (kg) | 2–3.5 |
| Static deflection (mm) | 1 |
| Natural frequency (Hz) | 15 |
| Max displacement (mm) | 2.5 |
| Transmissibility | ≤ 2 |
| Unit mass (kg) | ≤ 0.2 |
| Temp. (°C) | -55 °C to +85 °C (-67 °F to +185 °F) |
Dimensions in millimetres and weight in grams unless the label states otherwise. Temperatures are given in °C with the °F equivalent.
Where it is used
Electronics mounted in airborne, shipboard and vehicle-mounted equipment where platform vibration or shock would otherwise reach the chassis directly. Selection is per mounting point, not per enclosure.
