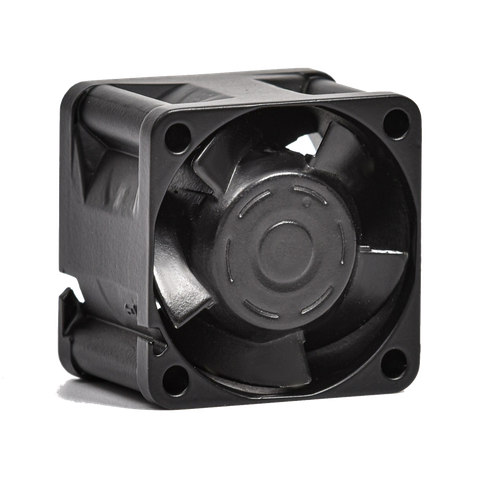

Minipro PCG36FZW528-30G-AA Ø44mm 24V DC Axial Fan
Dia. 44.45 mm x 39.2 mm · 18-32 V DC
DC axial fan for SWaP-constrained avionics and UAV electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Minipro PCG36FZW528-30G-AA Ø44mm 24V DC Axial Fan.
The Minipro PCG36FZW528-30G-AA is a 28V DC axial cooling fan designed for ruggedized electronics enclosures and portable defense equipment. The Dia. 44.45mm × 39.2mm frame balances airflow capacity with installation footprint. Nominal supply is 28V DC, with an operating input window of 18-32V DC. Rated speed is 28,000 RPM. Speed control is via lsw.
At rated input, maximum free-air delivery is 20.5 CFM and peak static pressure is 35.56 mmH2O. Acoustic output is rated at 76.2 dB(A).
Build details include IP67 sealing available as a configuration option. Operating temperature range spans -55°C to +85°C.
Key specifications
Reference values for Minipro PCG36FZW528-30G-AA Ø44mm 24V DC Axial Fan at nominal input and in free air: 20.50 CFM free-air flow at 35.56 mmH2O static pressure, supply 18-32 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | Dia. 44.45 mm x 39.2 mm |
| Rated voltage | 28 V DC |
| Voltage range | 18-32 V DC |
| Max airflow (free air) | 20.50 CFM |
| Max static pressure | 35.56 mmH2O |
| Rated rotational speed | 28,000 RPM |
| Acoustic noise | 76.2 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Minipro PCG36FZW528-30G-AA at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | LSW |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Minipro PCG36FZW528-30G-AA. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | Dia. 44.45 mm x 39.2 mm |
| Protection rating | IP67 configuration option |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Minipro PCG36FZW528-30G-AA at rated input.
P-Q Curve — PCG36FZW528-30G-AA @ 28V DC
At nominal input conditions, this reference curve maps static pressure from 0-58.5 mmH2O against airflow from 0-21.5 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
