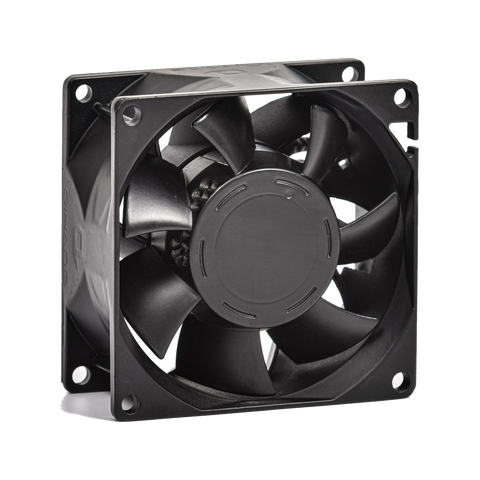

Ultrapro PCG74FZW415-38G-AC
80 mm x 80 mm x 38 mm · 18-26.5 V DC
Ultrapro PCG74FZW415-38G-AC — DC axial fan for SWaP-constrained avionics and UAV electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Key specifications
Reference values for Ultrapro PCG74FZW415-38G-AC at nominal input and in free air: 121.10 CFM free-air flow at 97.90 mmH2O static pressure, supply 18-26.5 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
80 mm x 80 mm x 38 mm
Frame size
24 V DC
Rated voltage
121.1 CFM
Max airflow
97.9 mmH2O
Static pressure
13,000 RPM
Rated speed
77.5 dB(A)
Acoustic noise
| Parameter | Specification |
|---|---|
| Frame size | 80 mm x 80 mm x 38 mm |
| Rated voltage | 24 V DC |
| Voltage range | 18-26.5 V DC |
| Max airflow (free air) | 121.10 CFM |
| Max static pressure | 97.90 mmH2O |
| Rated rotational speed | 13,000 RPM |
| Acoustic noise | 77.5 dB(A) |
| Operating temperature | -40 °C to +70 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Ultrapro PCG74FZW415-38G-AC at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | PWM |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Ultrapro PCG74FZW415-38G-AC. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 80 mm x 80 mm x 38 mm |
| Protection rating | IP67 configuration option |
| Operating temperature range | -40 °C to +70 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Ultrapro PCG74FZW415-38G-AC at rated input.

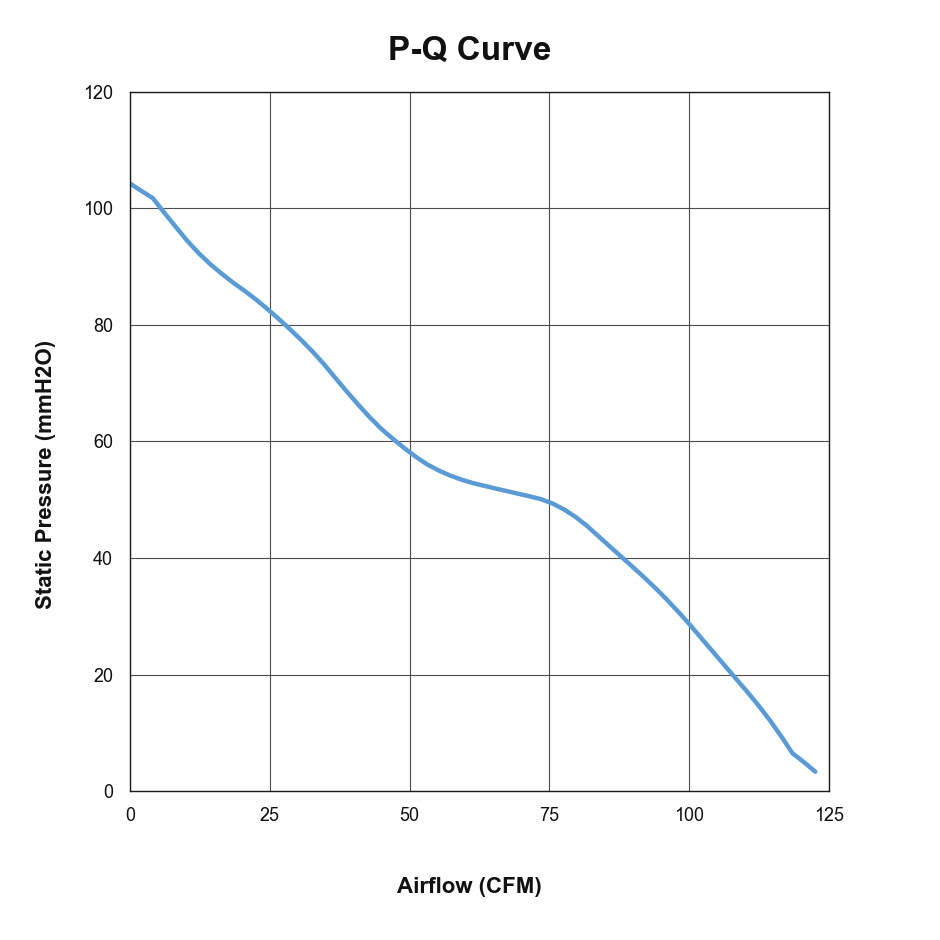

P-Q Curve — PCG74FZW415-38G-AC @ 24V DC
At nominal input conditions, this reference curve maps static pressure from 0-104.3 mmH2O against airflow from 0-122.5 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
