Wedge Locks and Card Retainers

XS-D130-5-2M2F1M3

5-segment · L 130 mm · 2-M2 mounting

XS-D130-5-2M2F1M3 belongs to the Wedge Locks and Card Retainers range. The figures below are the published values for this part number; confirm the drawing before release to production.

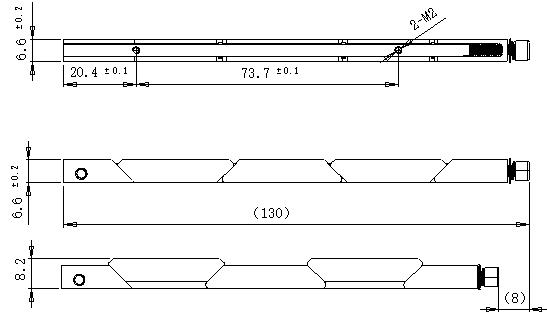

Dimensions and specification

Segments5-segment
Weight (g)13.9 g
L (mm)130
L1 (mm)73.7
L2 (mm)20.4
H1 (mm)6.6
H2 (mm)8.2
H3 (mm)6.6
Recommended width (mm)7.6
Mounting holes2-M2
Locking screwM3
Screw head standardInternal hex, GB/T 70.1 (≈ ISO 4762 / DIN 912)

Dimensions in millimetres and weight in grams unless the label states otherwise. Temperatures are given in °C with the °F equivalent.

Where it is used

Conduction-cooled VPX, CPCI, VME, ASAAC and ATR modules in airborne, shipborne and vehicle-mounted chassis, where the module has to be bonded to the cold wall and held mechanically at the same time.

How to select the wedge lock

A wedge lock is not a fastener. It is the thermal and mechanical interface between a plug-in module and the chassis cold wall: the clamping force it develops along the module edge sets the contact pressure, and that contact pressure is what the conduction path of the whole module depends on. Treating it as a mechanical accessory is the usual reason a conduction-cooled card passes a pull test and still runs hot.

Selection runs in three steps. The module format and slot profile decide the edge thickness that has to be clamped - VPX (VITA 46), CPCI, VME, ASAAC and ATR all use different card edges and different cold-wall grooves. The available edge length then decides the segment count: a 3-segment strip suits short edges, a 5-segment strip spreads the same total clamping force over a longer edge, and a multi-slope profile is used where the chassis fixes the cold-wall groove depth. Finally the locking screw and screw head standard have to match the tooling the chassis is assembled and serviced with.

A strip that covers only part of the module edge concentrates clamping force at its own ends and leaves a thermal gap at the corners. The module can still pass a mechanical check and still run above its predicted junction temperature. Check the recommended module width bracket and the L dimension against the real card edge, and confirm the drawing before release to production.

Compare with related part numbers

Part number Segments / type Overall length L (mm) Weight (g)
XS-D130-5-2M2F1M3 5-segment 130 13.9 g
XS-D127-5-2M2.5F1M3 5-segment 127 15.1 g
XS-A125-5-3M2F1M3 5-segment 125 13 g
XS-D137-5-3M2.5F1M3 5-segment 137 15 g
XS-A100-5-3M2F1M3 5-segment 100 10.5 g
