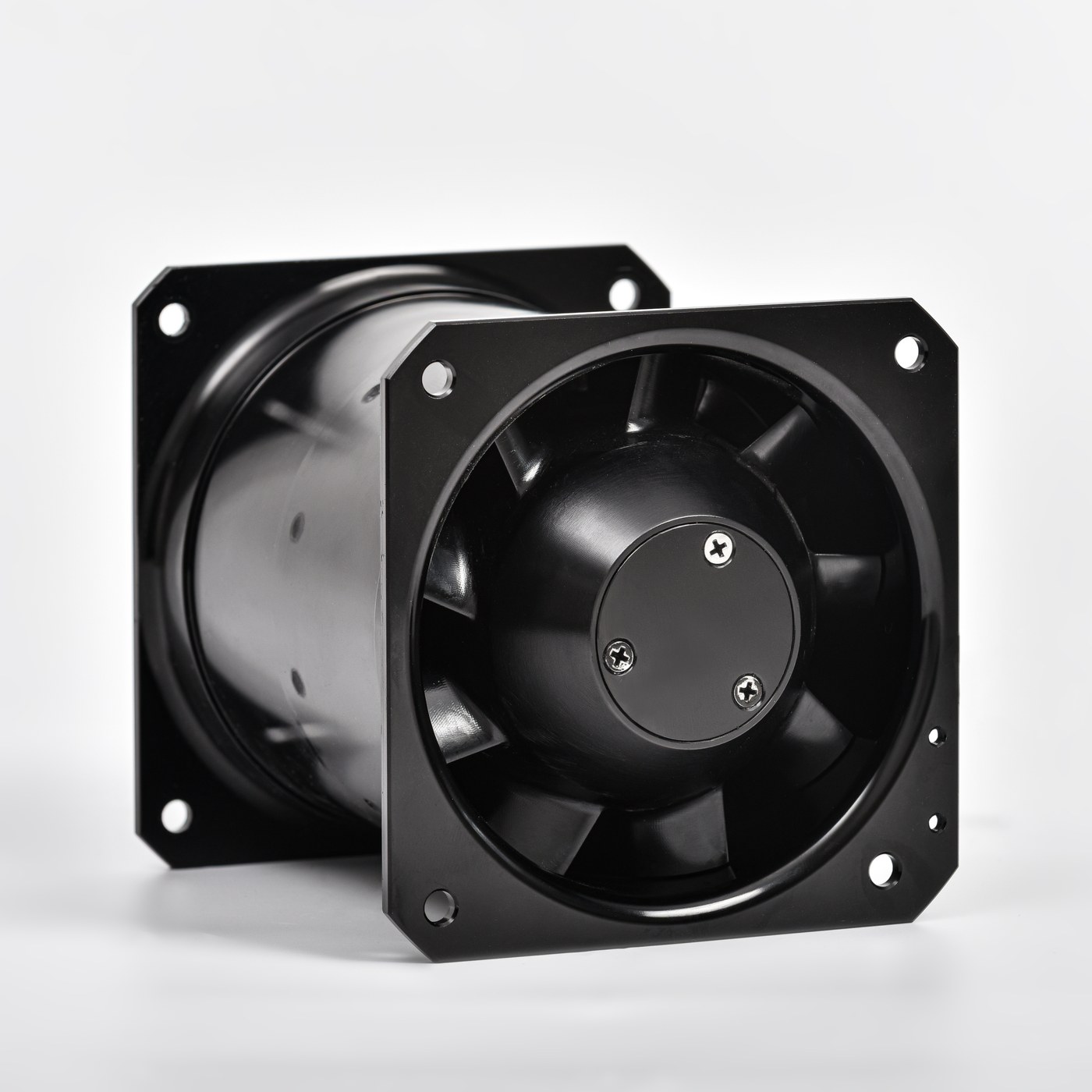

PCG112JFZY77-38G-AA
119 mm x 119 mm x 38 mm · 400Hz AC
PCG112 400 Hz AC fan for defense and aerospace electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Key specifications
Reference values at nominal input conditions, in free air unless stated otherwise. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 119 mm x 119 mm x 38 mm |
| Rated voltage | 200 V line / 115 V phase AC |
| Max airflow (free air) | 252.00 CFM |
| Max static pressure | 46.80 mmH2O |
| Rated rotational speed | 7,200 RPM |
| Acoustic noise | 78.0 dB(A) |
| Operating temperature | -40 °C to +100 °C |
Mechanical & environmental
Operating envelope, life expectancy, and environmental qualification summary. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 119 mm x 119 mm x 38 mm |
| Operating temperature range | -40 °C to +100 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics at rated input.
The model-specific P-Q curve is included in the full datasheet — contact our engineering team and we will send it with the datasheet package.
