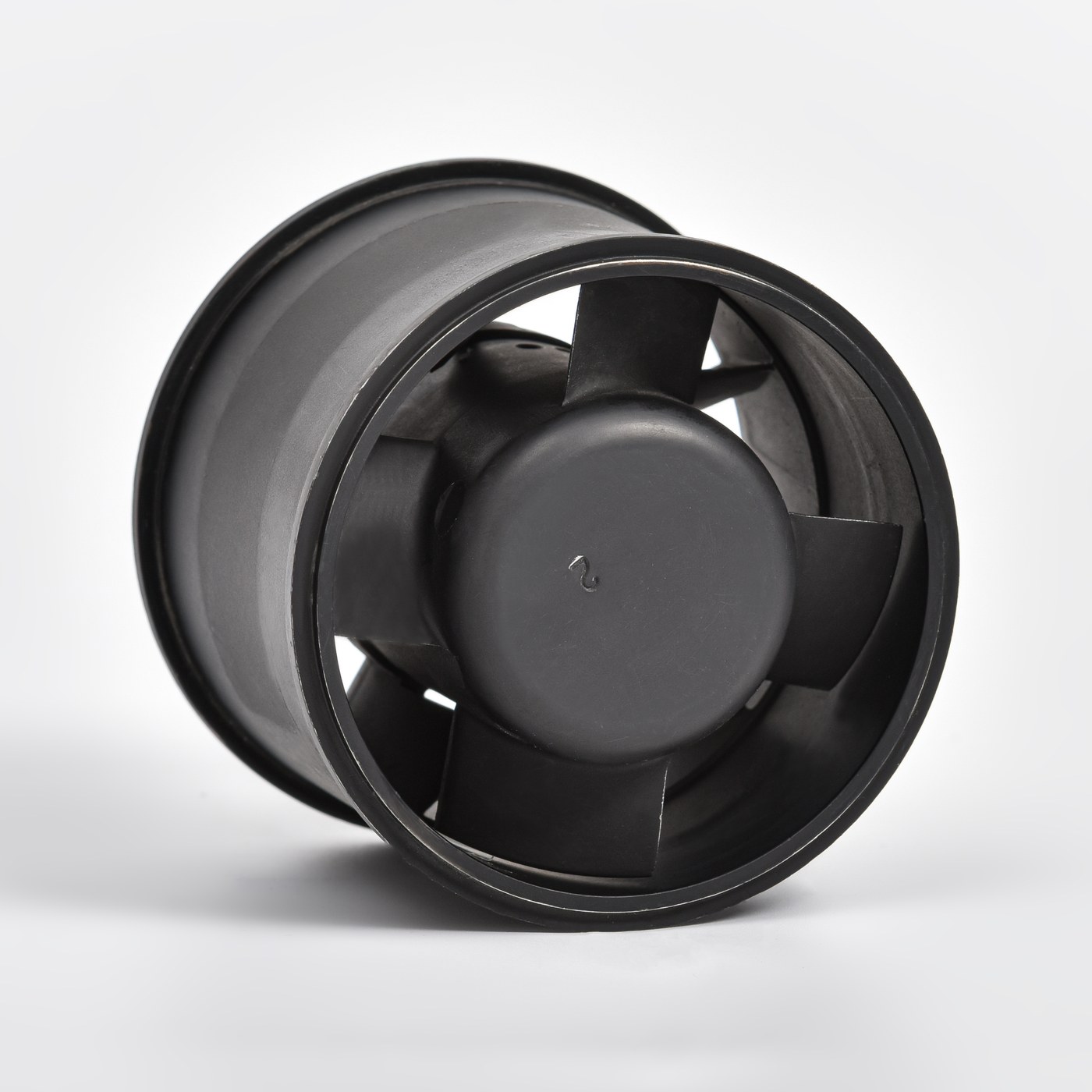

PCG146178-C
152.4 mm x 152.4 mm x 177.8 mm · 400Hz AC
PCG146178 400 Hz AC fan for defense and aerospace electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Key specifications
Reference values at nominal input conditions, in free air unless stated otherwise. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 152.4 mm x 152.4 mm x 177.8 mm |
| Rated voltage | 208 V AC |
| Max airflow (free air) | 90.00 CFM |
| Max static pressure | 440.00 mmH2O |
| Rated rotational speed | 12,300 RPM |
| Acoustic noise | 100.0 dB(A) |
Mechanical & environmental
Operating envelope, life expectancy, and environmental qualification summary. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 152.4 mm x 152.4 mm x 177.8 mm |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics at rated input.
The model-specific P-Q curve is included in the full datasheet — contact our engineering team and we will send it with the datasheet package.
