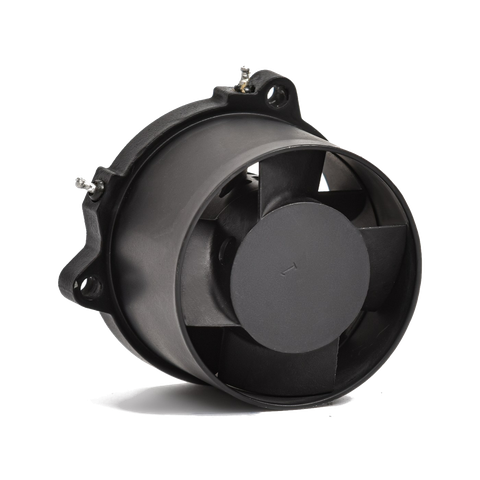

Titan PCG24JFZY222-26G-AA 25mm 26V AC 400Hz Fan
25.4 mm x 25.4 mm x 25.4 mm · 400Hz AC
400 Hz AC fan for airborne 400 Hz platforms. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Titan PCG24JFZY222-26G-AA 25mm 26V AC 400Hz Fan.
The Titan PCG24JFZY222-26G-AA is a 400Hz AC axial cooling fan designed for 400Hz ground-power cart cooling and flight-line equipment. The 25.4mm × 25.4mm × 25.4mm frame balances airflow capacity with installation footprint. Nominal supply is 26V AC. Rated speed is 22,000 RPM.
At rated input, maximum free-air delivery is 5.1 CFM and peak static pressure is 28.2 mmH2O. Acoustic output is rated at 48 dB(A).
Operating temperature range spans -55°C to +85°C.
Key specifications
Reference values for Titan PCG24JFZY222-26G-AA 25mm 26V AC 400Hz Fan at nominal input and in free air: 5.10 CFM free-air flow at 28.20 mmH2O static pressure, supply 26 V AC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 25.4 mm x 25.4 mm x 25.4 mm |
| Rated voltage | 26 V AC |
| Max airflow (free air) | 5.10 CFM |
| Max static pressure | 28.20 mmH2O |
| Rated rotational speed | 22,000 RPM |
| Acoustic noise | 48.0 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Titan PCG24JFZY222-26G-AA. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 25.4 mm x 25.4 mm x 25.4 mm |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Titan PCG24JFZY222-26G-AA at rated input.

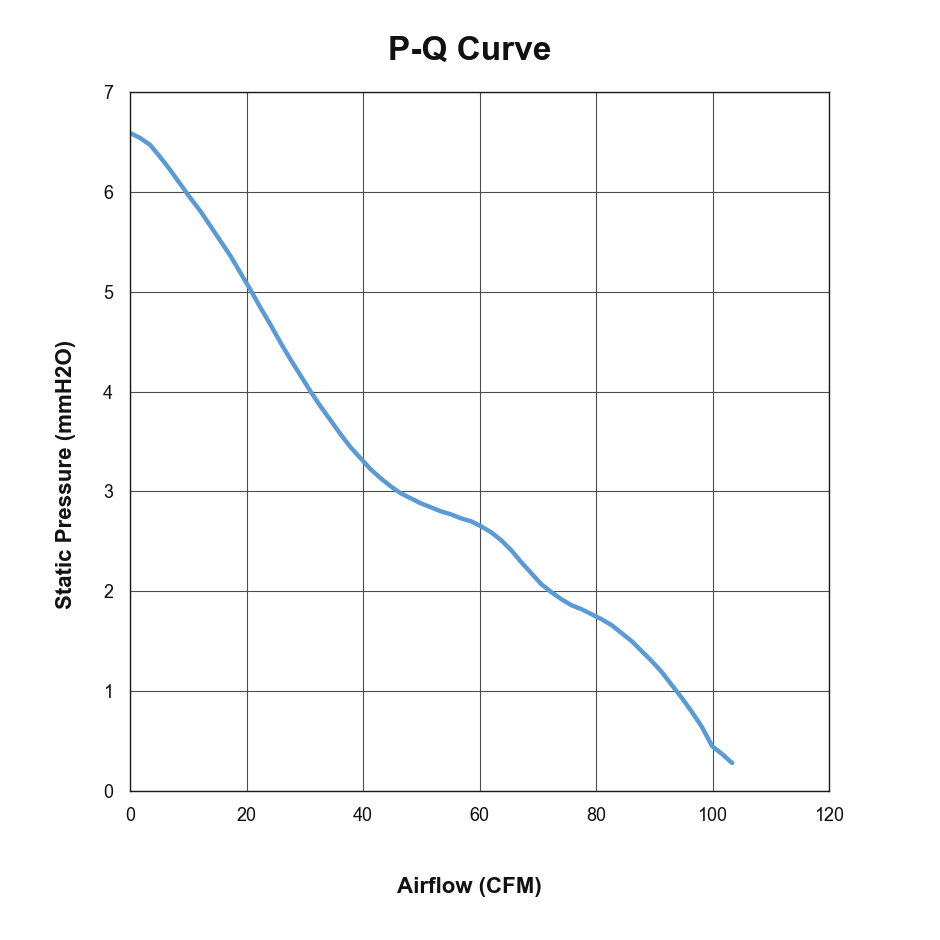

P-Q Curve — PCG24JFZY222-26G-AA @ 26V AC, 400Hz
At nominal input conditions, this reference curve maps static pressure from 0-6.6 mmH2O against airflow from 0-103.4 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
