Titan PCG252JZZL83-154G-AA Ø252mm 230V AC Fan
Dia. 252 mm x 154 mm · 50/60Hz AC
AC fan for defense and aerospace electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Titan PCG252JZZL83-154G-AA Ø252mm 230V AC Fan.
The Titan PCG252JZZL83-154G-AA is a 50/60Hz AC axial cooling fan designed for ground-system electronics cooling and cabinet ventilation. The Dia. 252mm × 154mm frame balances airflow capacity with installation footprint. Nominal supply is 230V AC, with an operating input window of 200-250V AC. Rated speed is 3,390 RPM. Speed control is via pwm/vc.
At rated input, maximum free-air delivery is 1,117 CFM and peak static pressure is 71.4 mmH2O. Acoustic output is rated at 87 dB(A).
Build details include IP67 sealing available as a configuration option. Operating temperature range spans -40°C to +80°C.
Key specifications
Reference values for Titan PCG252JZZL83-154G-AA Ø252mm 230V AC Fan at nominal input and in free air: 117.00 CFM free-air flow at 71.40 mmH2O static pressure, supply 200-250 V AC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | Dia. 252 mm x 154 mm |
| Rated voltage | 230 V AC |
| Voltage range | 200-250 V AC |
| Max airflow (free air) | 117.00 CFM |
| Max static pressure | 71.40 mmH2O |
| Rated rotational speed | 3,390 RPM |
| Acoustic noise | 87.0 dB(A) |
| Operating temperature | -40 °C to +80 °C |
Electrical & reliability
Input current, power, protection behavior and service life for Titan PCG252JZZL83-154G-AA at reference conditions.
| Parameter | Specification |
|---|---|
| Speed control / output signal | PWM/VC |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Titan PCG252JZZL83-154G-AA. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | Dia. 252 mm x 154 mm |
| Protection rating | IP67 configuration option |
| Operating temperature range | -40 °C to +80 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Titan PCG252JZZL83-154G-AA at rated input.

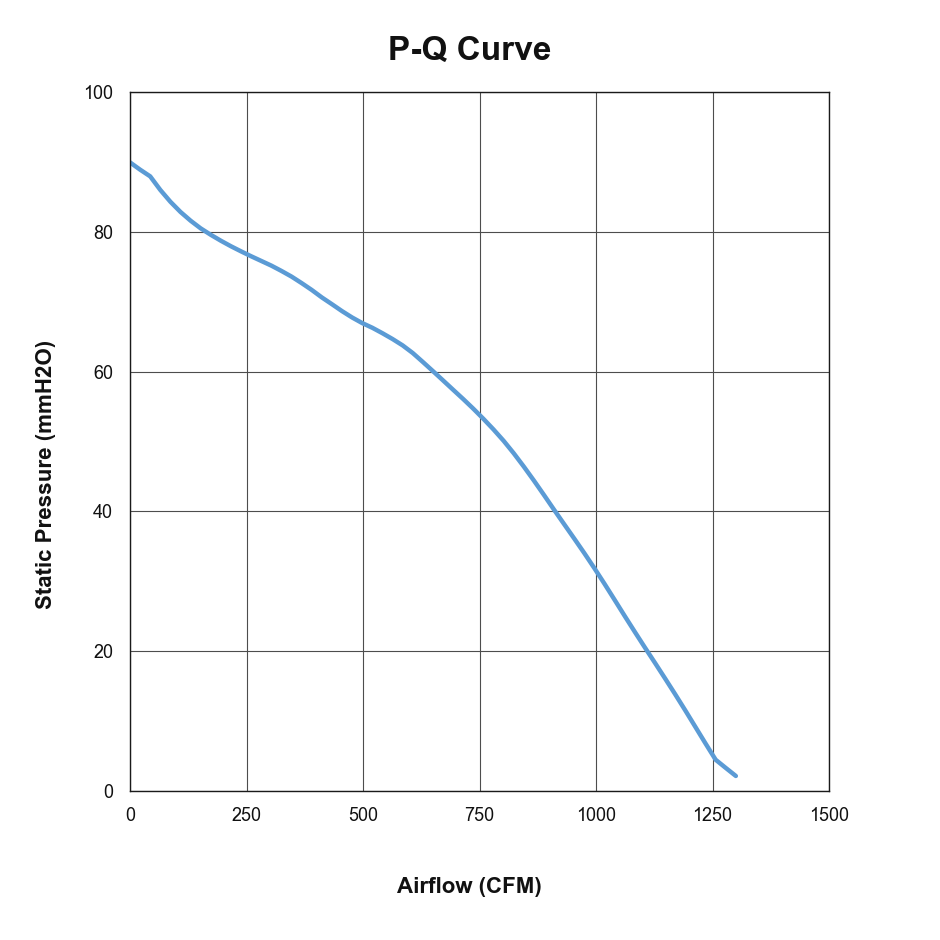

P-Q Curve — PCG252JZZL83-154G-AA @ 230V AC, 50/60Hz
At nominal input conditions, this reference curve maps static pressure from 0-89.9 mmH2O against airflow from 0-1300.1 CFM. Use it for first-pass operating-point review; full-resolution P-Q curves, CAD files, and product-specific datasheets are available for qualified RFQ review.
