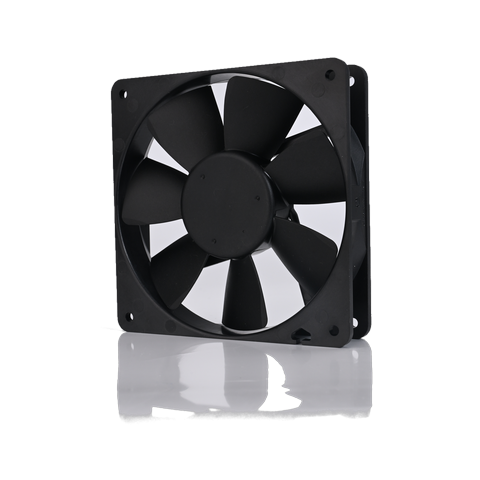

Hyperpro PCG112FZW52-25G-AG 120mm x 120mm x 25mm 28V DC Axial Fan
120 mm x 120 mm x 25 mm · 18-32 V DC
DC axial fan for radar cabinets and ground-defense electronics. Full datasheet, P-Q curve and dimensional drawing available through an RFQ.
Overview
Application and specification highlights for Hyperpro PCG112FZW52-25G-AG 120mm x 120mm x 25mm 28V DC Axial Fan.
The Hyperpro PCG112FZW52-25G-AG is a 28V DC axial cooling fan designed for high-density electronics cooling in industrial and defense platforms. The 120mm x 120mm x 25mm frame balances airflow capacity with installation footprint. Nominal supply is 28V DC, with an operating input window of 18-32V DC. Rated speed is 2,900 RPM.
At rated input, maximum free-air delivery is 101.7 CFM and peak static pressure is 5.9 mmH2O. Acoustic output is rated at 43 dB(A).
Build details include IP55 sealing available as a configuration option. Operating temperature range spans -55°C to +85°C. The model is supplied as a drop-in form-fit replacement for the legacy J112FZW52-25G-AG designation.
Form-fit-function equivalents that share this platform: J112FZW52-25G-AJ.
Key specifications
Reference values for Hyperpro PCG112FZW52-25G-AG 120mm x 120mm x 25mm 28V DC Axial Fan at nominal input and in free air: 101.70 CFM free-air flow at 5.90 mmH2O static pressure, supply 18-32 V DC. Specifications are subject to change without notice; see the full datasheet for derating curves, tolerances and qualification data.
| Parameter | Specification |
|---|---|
| Frame size | 120 mm x 120 mm x 25 mm |
| Rated voltage | 28 V DC |
| Voltage range | 18-32 V DC |
| Max airflow (free air) | 101.70 CFM |
| Max static pressure | 5.90 mmH2O |
| Rated rotational speed | 2,900 RPM |
| Acoustic noise | 43.0 dB(A) |
| Operating temperature | -55 °C to +85 °C |
Mechanical & environmental
Operating envelope, life expectancy and environmental qualification summary for Hyperpro PCG112FZW52-25G-AG. Full environmental test report available through an RFQ.
| Parameter | Specification |
|---|---|
| Frame size | 120 mm x 120 mm x 25 mm |
| Protection rating | IP55 configuration option |
| Operating temperature range | -55 °C to +85 °C |
Environmental test details — including specific shock and acceleration profiles — are provided with the engineering review package upon request.
P-Q performance curve
Airflow vs. static pressure characteristics for Hyperpro PCG112FZW52-25G-AG at rated input.
P-Q Characteristic — PCG112FZW52-25G-AG @ 28V DC
Reference characteristic anchored to rated maximum airflow (101.7 CFM) and rated maximum static pressure (5.9 mmH2O). Use it for first-pass operating-point review only. Measured P-Q curves, CAD models, and lot-level test reports are available for qualified RFQ review.
